Shore A 90 Black Fire proof Cable insulation PVC compound granules for Charger data Cable
Wire and Cable Insulation and Jacket PVC Compounds
Product Introduction:
Our clients are highly satiated with our range of high quality Lead-Free PVC compounds, PVC Wire Compound and more. The genesis for the raw material of our products is sourced from trusted names that help us in manufacturing perfect quality compounds.
Features of our P.V.C Compound:
-
Flame Resistant
-
Highly Flexible
-
Resistance to Wear
-
Shock Proof
Product Name:
- 70 ℃ PVC Cable Compound
- 90 ℃ PVC Cable Compound
- 105 ℃ PVC Cable Compound
- 105 ℃ Irradiated crosslinked FR PVC Compound
- 80 ℃ Irradiated crosslinked FR PVC Compound
- PVC Compound for Plug
Technical Data:
| Items | Unit | Typical Value | Testing Method |
| 70 ℃ PVC Cable Compound | 105 ℃ PVC Cable Compound | 105 ℃ Irradiated crosslinked FR PVC Compound |
| Tensile Strength | Mpa | 11 | 11 | 12 | GB/T 1040.3-2006 |
| Elongation at Break | % | 180 | 180 | 180 |
| Heat Aging | | | | | |
| Testing Termperature | ℃ | 100 | 135 | 135 | GB/T 8815-2008 |
| Testing Time | h | 168 | 168 | 168 |
| Variation at tensile strength | % | 20 | 20 | 20 |
| Variation at elongation | % | -15 | -15 | -15 |
| Low Temperature Brittleness | ℃ | -20 | -20 | -20 | GB/T 5470-2008 |
| Oxygen Index | / | ≥23 | ≥23 | ≥28 | GB/T 2406.2-2008 |
| Density | g/cm3 | 1.42 | 1.42 | 1.42 | GB/T 1033.1-2008 |
| Hardness | Shore A | 70-96 | 70-96 | 70-96 | GB/T 2411-2008 |

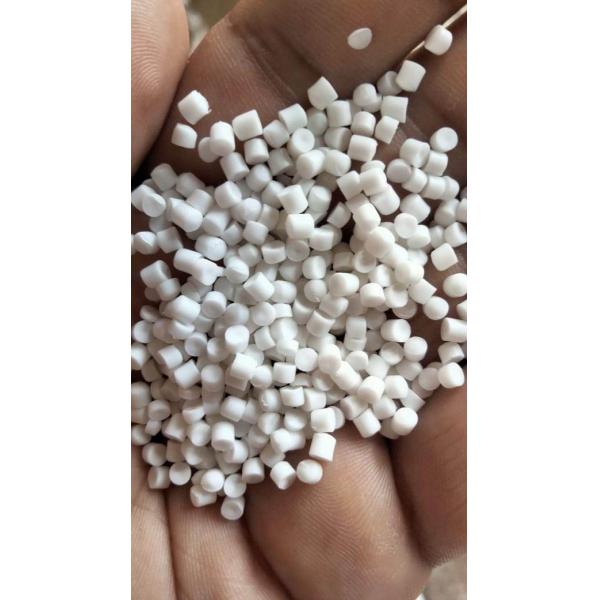

Soft PVC Compound (Granules)
-For Electric Wires and Cables for Insulation Sheathing and Bedding.
Anti Rodent.
Anti Termites.
Oil Resistant.
Flame Retardant.
Automotive.
Others.

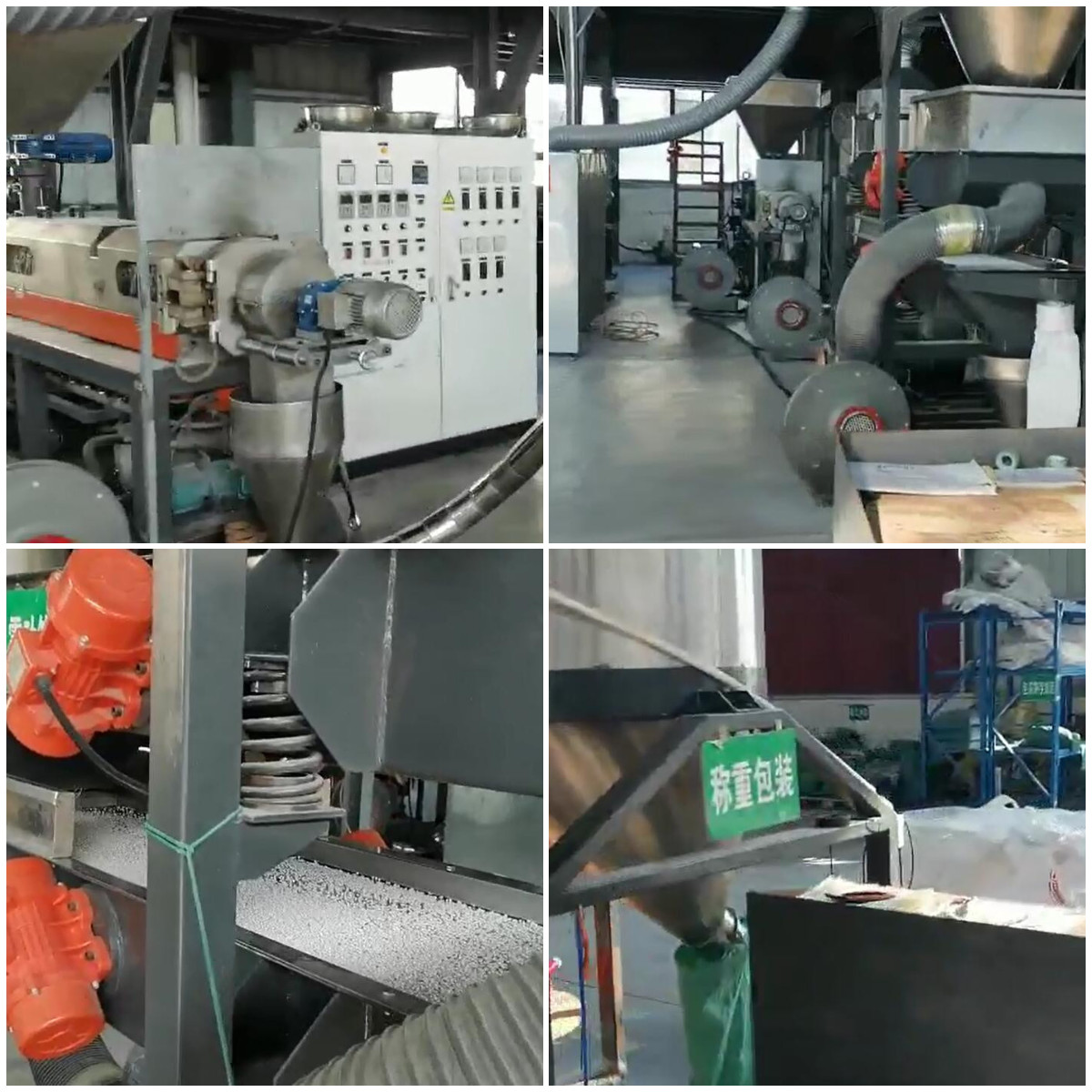

Product Show:
The standard finish of all cables consists of an extruded black PVC oversheath, the external surface of which is embossed with the appropriate legend. The oversheath PVC grade is usually Type TM 1 or Type 9 to BS 7655 although other grades, e.g., Type 5 (85°C Hard) PVC or PVC sheath with anti-termite properties can be provided when specified. The PVC grade is ST2 for cables conforming to IEC 60502- 1 standard.
Storage :
These compounds must be stored at ambient temperature (not exceeding 30’C) in closed and unbroken packaging ,in order to avoid exposure to sunlight and water absorption.
Packaging :
Available in 25Kg plastic bags, big bags, carton oktabins or in slos truck
How To order :
1. Let me know the models, specification, quantities, colors you want to order
2. We will email you the Proforma Invoice based on your order information
3. Kindly check the PI, everything is ok, we will start production as soon as receiving payment deposit or LC, then
deliver the goods on request, original documents will be send against full payment
Product Tags:
|
|
Shore A 90 Fireproof Data Cable Insulation PVC Compound Granules Images
|
